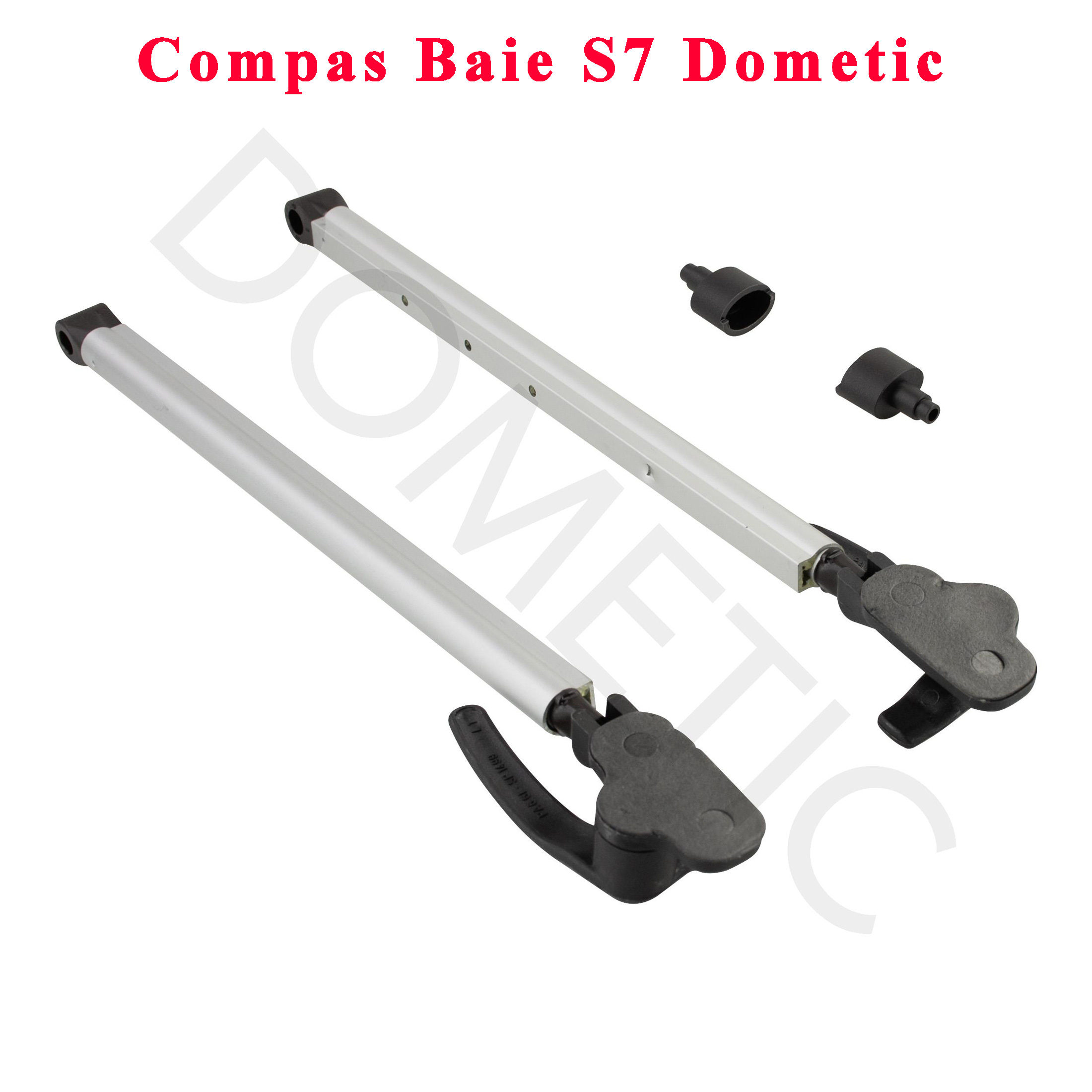

Dometic seitz, paire de vérin avec poignées et à cliquets ou compas pour les baies S7 de hauteur 500 mm ou 510 mm

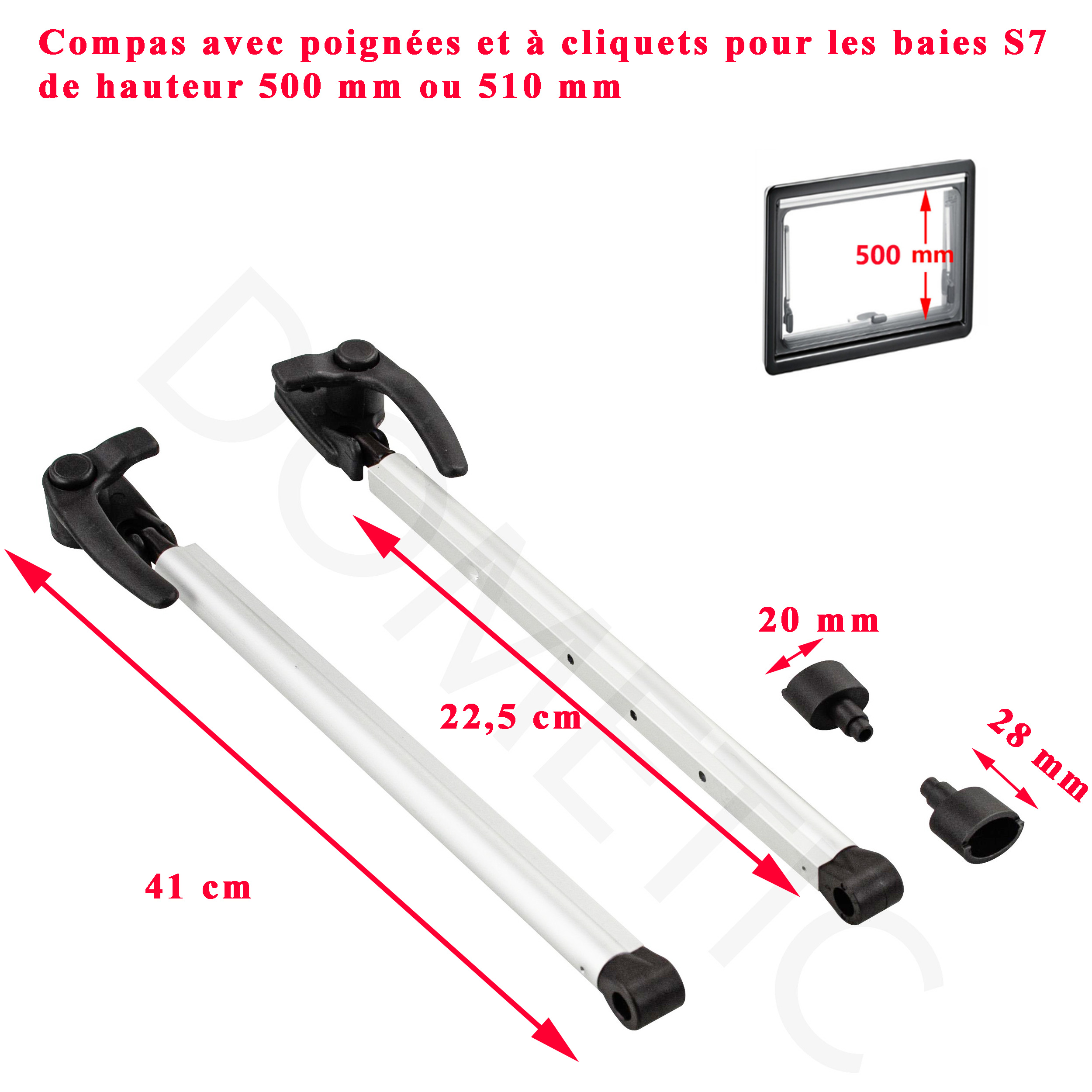

La longueur d’un bout à l’autre du compas ( verin) fermé (1er cliquet) de 28 cm.
La longueur d’un bout à l’autre du compas ouvert au maximun (sur le 3 cliquets) est de 34 cm.
la dimension de 500 mm n’est pas la longueur des compas ou verin mais celle de la hauteur de la baie.
Pour cela, prendre les dimensions d’encastrement, ou encore les dimensions qui sont indiqués sur la baie par exemple une baie 900 x 500 va avoir l’inscription 0900×0500. Il faut donc un compas pour baie de 500 mm.
Faire attentions entre les verins à cliquets et les verins à friction notre reference EW1452
Ref parts : 4460001202
Réf: EW1578
(date 1/9/25 ok)

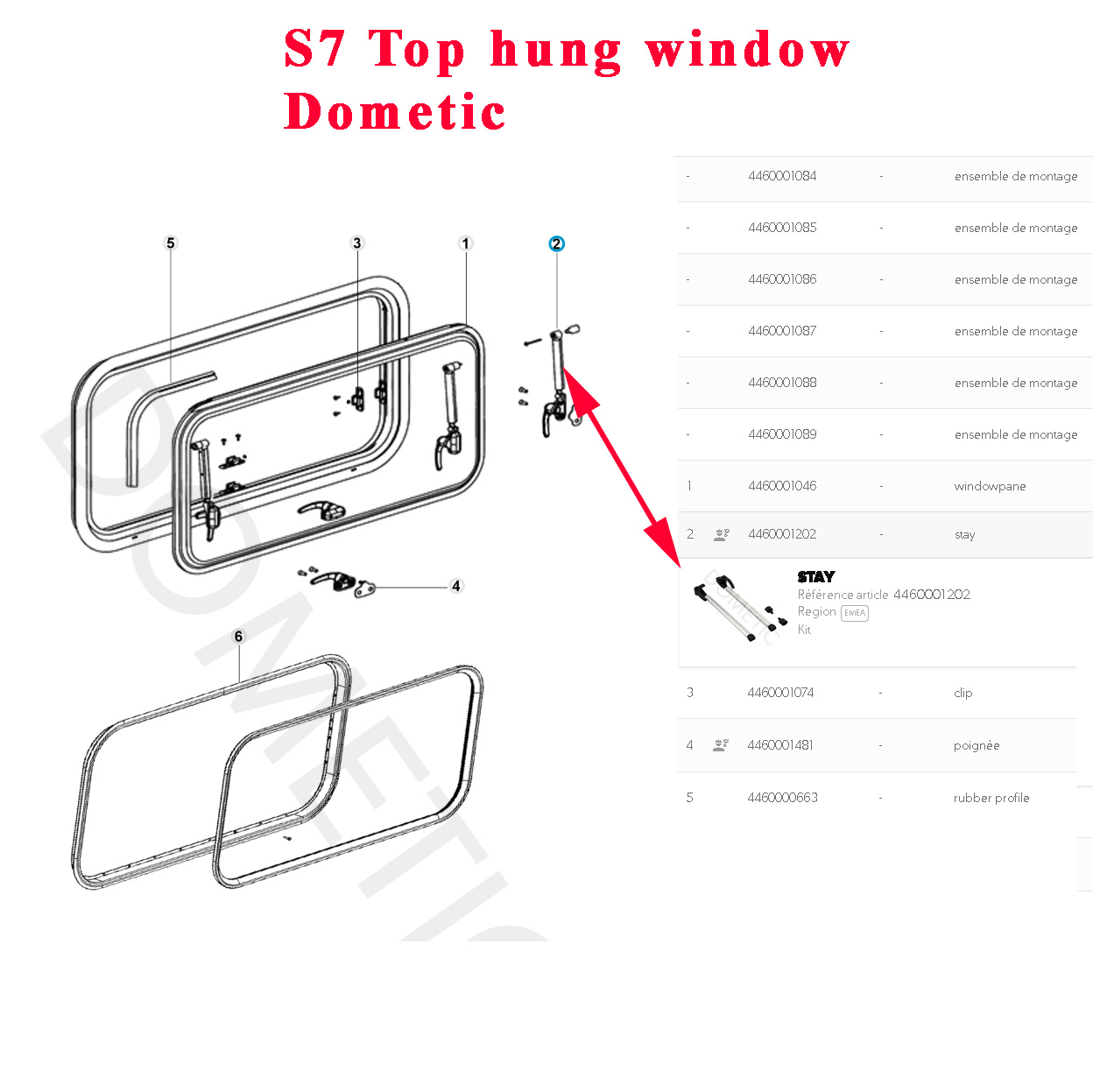

Compatible pour les appareils suivants :
n° Produit Nom du produit
9104119930 S7 Top hung window, article1355, 900×500
9104121878 S7 Top hung window, article1355, 250×510
9104115781 S7 Top hung window, article1355, 800×510
9104115267 S7 Top hung window, article1355, 700×500
9104115476 S7 Top hung window, article1355, 510×510
9104115604 S7 Top hung window, article1355, 900×800
9104103695 S7 Top hung window, article1355
9104105206 S7 Top hung window, article1355
9104113754 S7 Top hung window, article1355
9104110049 S7 Top hung window, article1355
9104110042 S7 Top hung window, article1355
9104110047 S7 Top hung window, article1355, 600×510
9104109669 S7 Top hung window, article1355, 900×500
9104109668 S7 Top hung window, article1355, 700×500
9104109670 S7 Top hung window, article1355
9104110136 S7 Top hung window, article1355, 900×520
9104100915 S7 Top hung window, article1355, 800×510
9104116515 S7 Top hung window, article1355, 700×500
9104100867 S7 Top hung window, article1355
9104107369 S7 Top hung window, article1355, 900×800
9104113781 S7 Top hung window, article1355, 900×500
9104115634 S7 Top hung window, article1355, 600×510
9104114994 S7 Top hung window, article1355, 900×500
9104116033 S7 Top hung window, article1355, 900×520
9104111670 S7 Top hung window, article1355
9104114187 S7 Top hung window, article1355, 510×510
9104114188 S7 Top hung window, article1355, 700×500
9104105168 S7 Top hung window, article1355
9104113324 S7 Top hung window, article1355, 510×510
9104113322 S7 Top hung window, article1355
9104113323 S7 Top hung window, article1355, 1000×510
9104105174 S7 Top hung window, article1355
9104105166 S7 Top hung window, article1355
9104105213 S7 Top hung window, article1355
9104105207 S7 Top hung window, article1355
9104105211 S7 Top hung window, article1355
9104105209 S7 Top hung window, article1355
