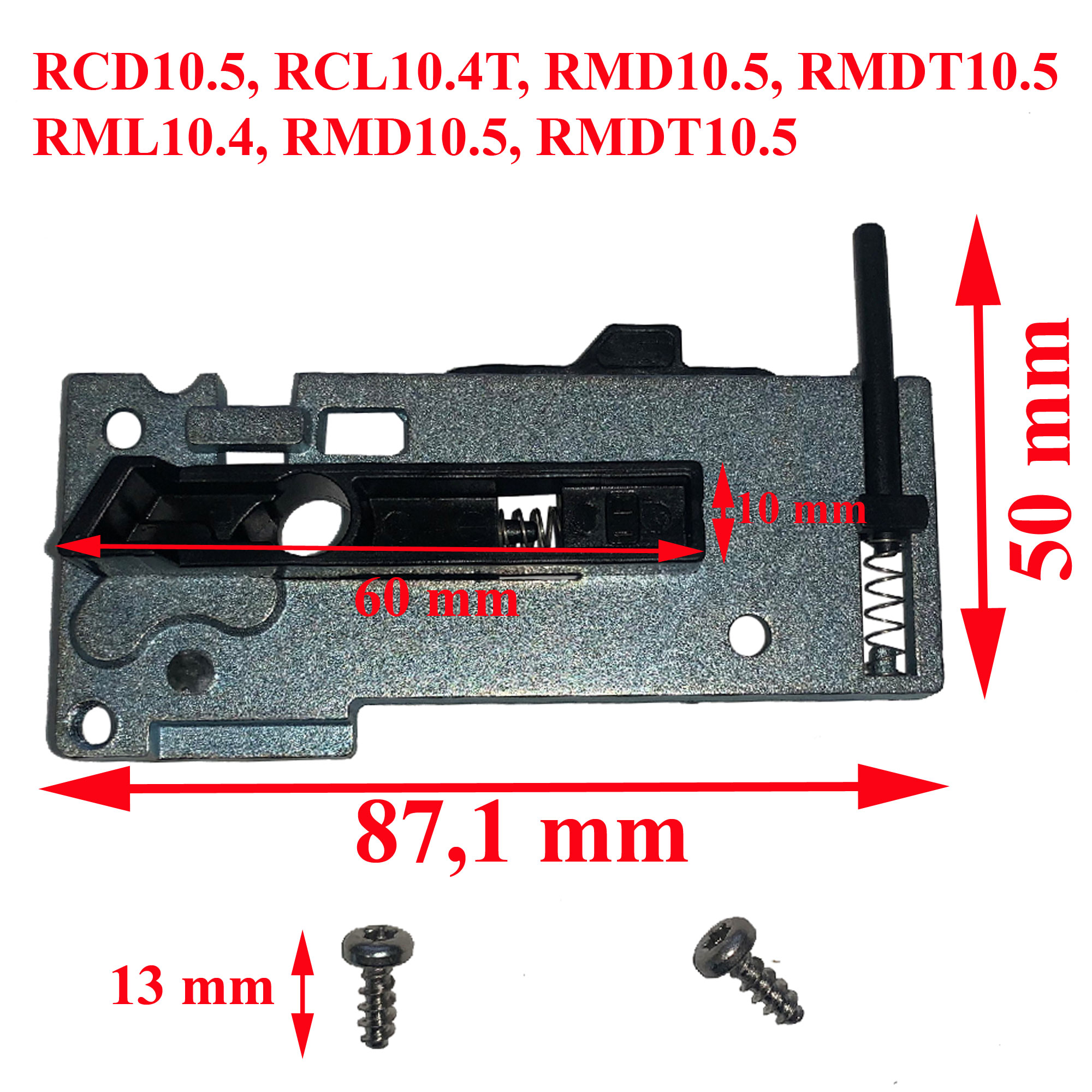

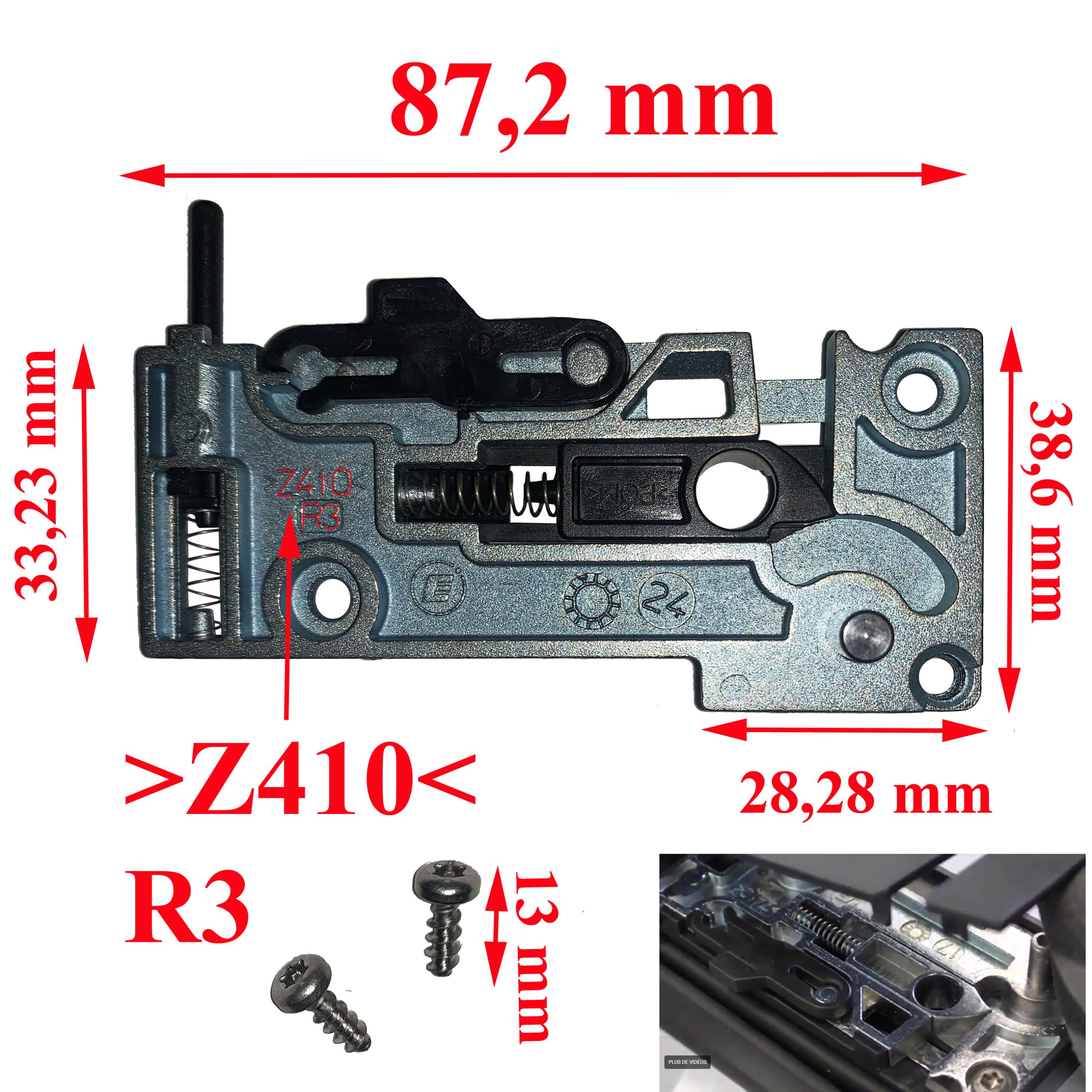

système de fermeture des portes pour les réfrigérateurs : RCD10.5, RCL10.4T, RMD10.5, RMDT10.5, RML10.4, RMD10.5, RMDT10.5 par Dometic
Faite bien attention, le système de fermeture est diffèrent à droite et à gauche (il n’est pas permutable). Ici vous avez celui du coté supérieur droit et inférieur gauche, vérifier avec le schéma en photo.
Compatible pour les modèles suivants :
- RCD 10.5T, RCD 10.5XT,
- RCL 10.4T
- RMD 10.5, RMD 10.5T, RMD 10.5X, RMD 10.5XT
- RMDT 10.5, RMDT 10.5T, RMDT 10.5X, RMDT 10.5XT
- RML 10.4, RML 10.4T, RML10.4P
- RMD10.5P, RMD10.5XP,
- RMDT10.5XP, RMDT10.5P
pièce origine constructeur, ref parts 289017708
Réf: EW1843
le lot comporte:
| Référence article | Quantité | Libellé article | Description |
|---|---|---|---|
| 289070412 | 1 | boulon | right |
| 289070710 | 1 | ressort | upper right, lower left |
| 289070500 | 1 | lock pin | |
| 289070700 | 1 | ressort | for lock pin |
| 289070311 | 1 | coulisse | upper right, lower left |
| 295277811 | 2 | vis voyant | |
| 289071900 | 1 | fixation |
Piece d’origine constructeur (ref parts 289078623)
Pour éviter d’endommager le bon fonctionnement de la porte qui s’ouvre dans les deux sens.
Il faut respecter les trois points suivants :
- La porte ne doit pas être ouverte à plus de 90 °C.
- La porte ne doit pas être surchargée dans les balconnets ou clayettes.
- À chaque fermeture de porte, un click (petit bruit) doit indiquer sa bonne fermeture.
Pour vérifier si votre réfrigérateur comporte ce système de fermeture, merci de nous contacter et munissez vous pour vérifier la compatibilité de votre numéro de produit de votre appareil Dometic (qui se trouve sur l’étiquette signalétique a l’intérieur de votre réfrigérateur en dessous de la lumière ou derrière le bac a légumes un nombre qui commence par 00921….).
Comment remplacer les fixations hiver de la porte Dometic
Pour les appareils suivants :
N° produit Nom du produit
921074241 RCD 10.5T Compressor Refrigerator 153l
921074270 RCD 10.5XT Compressor Refrigerator
921074264 RCD 10.5XT Compressor Refrigerator
921074276 RCD 10.5XT Compressor Refrigerator
921074279 RCD 10.5XT Compressor Refrigerator
921074342 RCD 10.5XT Compressor Refrigerator
921074343 RCD 10.5XT Compressor Refrigerator
921074233 RCL 10.4T Compressor Refrigerator 139l
921074238 RCL 10.4T Compressor Refrigerator 139l
921074278 RCL 10.4T Compressor Refrigerator 139l
921074341 RCL 10.4T Compressor Refrigerator 139l Korea
921074254 RMD 10.5 Absorption Refrigerator 153l
921074304 RMD 10.5 Absorption Refrigerator 153l
921074305 RMD 10.5 Absorption Refrigerator 153l
921074306 RMD 10.5 Absorption Refrigerator 153l
921132816 RMD 10.5 Absorption Refrigerator 153l
921074179 RMD 10.5 Absorption Refrigerator 153l
921074217 RMD 10.5 Absorption Refrigerator 153l
921074301 RMD 10.5 Absorption Refrigerator 153l
921074302 RMD 10.5 Absorption Refrigerator 153l
921074303 RMD 10.5 Absorption Refrigerator 153l
921074326 RMD 10.5 Absorption Refrigerator 153l
921074327 RMD 10.5 Absorption Refrigerator 153l
921132817 RMD 10.5 Absorption Refrigerator 153l
921132828 RMD 10.5 Absorption Refrigerator 153l
921132845 RMD10.5
921132903 RMD 10.5 Absorption Refrigerator 153l
921074181 RMD 10.5T Absorption Refrigerator 153l
921074185 RMD 10.5T Absorption Refrigerator 153l
921074213 RMD 10.5T Absorption Refrigerator 153l
921074245 RMD 10.5T Absorption Refrigerator 153l
921074267 RMD 10.5T Absorption Refrigerator 153l
921132830 RMD 10.5T Absorption Refrigerator 153l
921132956 RMD 10.5T Absorption Refrigerator 153l
921074169 RMD 10.5T Absorption Refrigerator 153l
921074198 RMD 10.5T Absorption Refrigerator 153l
921074205 RMD 10.5T Absorption Refrigerator 153l
921074207 RMD 10.5T Absorption Refrigerator 153l
921074208 RMD 10.5T Absorption Refrigerator 153l
921074209 RMD 10.5T Absorption Refrigerator 153l
921074256 RMD 10.5T Absorption Refrigerator 153l
921074258 RMD 10.5T Absorption Refrigerator 153l Korea
921074263 RMD 10.5T Absorption Refrigerator 153l
921132818 RMD 10.5T Absorption Refrigerator 153l
921132824 RMD 10.5T Absorption Refrigerator 153l
921132826 RMD 10.5T Absorption Refrigerator 153l
921132827 RMD 10.5T Absorption Refrigerator 153l
921132829 RMD 10.5T Absorption Refrigerator 153l
921132840 RMD 10.5T Absorption Refrigerator 153l
921132846 RMD10.5T
921132851 RMD 10.5T Absorption Refrigerator 153l
921132901 RMD 10.5T Absorption Refrigerator 153l
921132907 RMD 10.5T Absorption Refrigerator 153l
921132931 RMD 10.5T Absorption Refrigerator 153l
921132935 RMD 10.5T Absorption Refrigerator 153l
921132936 RMD 10.5T Absorption Refrigerator 153l
921074321 RMD 10.5X Absorption Refrigerator 177l
921074324 RMD 10.5X Absorption Refrigerator 177l
921074180 RMD 10.5X Absorption Refrigerator 177l
921074216 RMD 10.5X Absorption Refrigerator 177l
921074219 RMD 10.5X Absorption Refrigerator 177l
921074247 RMD 10.5X Absorption Refrigerator 177l
921074248 RMD 10.5X Absorption Refrigerator 177l
921074322 RMD 10.5X Absorption Refrigerator 177l
921074323 RMD 10.5X Absorption Refrigerator 177l
921074325 RMD 10.5X Absorption Refrigerator 177l
921074329 RMD 10.5X Absorption Refrigerator 177l
921074330 RMD 10.5X Absorption Refrigerator 177l
921074331 RMD 10.5X Absorption Refrigerator 177l
921074335 RMD 10.5X Absorption Refrigerator 177l
921132740 RMD 10.5T Absorption Refrigerator 153l
921132815 RMD 10.5X Absorption Refrigerator 177l
921132820 RMD 10.5X Absorption Refrigerator 177l
921132823 RMD 10.5X Absorption Refrigerator 177l
921132904 RMD 10.5X Absorption Refrigerator 177l
921132924 RMD 10.5X Absorption Refrigerator 177l
921132971 RMD 10.5X Absorption Refrigerator 177l
921132975 RMD 10.5X Absorption Refrigerator 177l
921074192 RMD 10.5XT Absorption Refrigerator 177l
921074246 RMD 10.5XT Absorption Refrigerator 177l
921132942 RMD 10.5XT Absorption Refrigerator 177l
921074190 RMD 10.5XT Absorption Refrigerator 177l
921074199 RMD 10.5XT Absorption Refrigerator 177l
921074202 RMD 10.5XT Absorption Refrigerator 177l
921074210 RMD 10.5XT Absorption Refrigerator 177l
921074224 RMD 10.5XT Absorption Refrigerator 177l
921074230 RMD 10.5XT Absorption Refrigerator 177l
921074231 RMD 10.5XT Absorption Refrigerator 177l
921074261 RMD 10.5XT Absorption Refrigerator 177l
921074293 RMD 10.5XT Absorption Refrigerator 177l
921074337 RMD 10.5XT Absorption Refrigerator 177l
921132709 RMD10.5XT
921132776 RMD 10.5XT Absorption Refrigerator 177l
921132813 RMD 10.5XT Absorption Refrigerator 177l
921132814 RMD 10.5XT Absorption Refrigerator 177l
921132819 RMD 10.5XT Absorption Refrigerator 177l
921132821 RMD 10.5XT Absorption Refrigerator 177l
921132822 RMD 10.5XT Absorption Refrigerator 177l
921132825 RMD 10.5XT Absorption Refrigerator 177l
921132831 RMD 10.5XT Absorption Refrigerator 177l
921132832 RMD 10.5XT Absorption Refrigerator 177l
921132839 RMD 10.5XT Absorption Refrigerator 177l
921132894 RMD 10.5XT Absorption Refrigerator 177l
921132895 RMD 10.5XT Absorption Refrigerator 177l
921132898 RMD 10.5XT Absorption Refrigerator 177l
921132906 RMD 10.5XT Absorption Refrigerator 177l
921132913 RMD 10.5XT Absorption Refrigerator 177l
921132937 RMD 10.5XT Absorption Refrigerator 177l
921132938 RMD 10.5XT Absorption Refrigerator 177l
921132939 RMD 10.5XT Absorption Refrigerator 177l
921132962 RMD 10.5XT Absorption Refrigerator 177l
921132963 RMD 10.5XT Absorption Refrigerator 177l
921074314 RMDT 10.5 Absorption Refrigerator 153l
921074316 RMDT 10.5 Absorption Refrigerator 153l
921074312 RMDT 10.5 Absorption Refrigerator 153l
921074313 RMDT 10.5 Absorption Refrigerator 153l
921074315 RMDT 10.5 Absorption Refrigerator 153l
921074317 RMDT 10.5 Absorption Refrigerator 153l
921074182 RMDT 10.5T Absorption Refrigerator 153l
921074214 RMDT 10.5T Absorption Refrigerator 153l
921074255 RMDT 10.5T Absorption Refrigerator 153l
921074165 RMDT 10.5T Absorption Refrigerator 153l
921074170 RMDT 10.5T Absorption Refrigerator 153l
921074191 RMDT 10.5T Absorption Refrigerator 153l
921074200 RMDT 10.5T Absorption Refrigerator 153l
921074204 RMDT 10.5T Absorption Refrigerator 153l
921074215 RMDT 10.5T Absorption Refrigerator 153l
921074240 RMDT 10.5T Absorption Refrigerator 153l
921074242 RMDT 10.5T Absorption Refrigerator 153l
921074280 RMDT 10.5T Absorption Refrigerator 153l
921132909 RMDT 10.5T Absorption Refrigerator 153l
921132930 RMDT 10.5T Absorption Refrigerator 153l
921132970 RMDT 10.5T Absorption Refrigerator 153l
921074310 RMDT 10.5X Absorption Refrigerator 177l
921074311 RMDT 10.5X Absorption Refrigerator 177l
921074307 RMDT 10.5X Absorption Refrigerator 177l
921074308 RMDT 10.5X Absorption Refrigerator 177l
921074309 RMDT 10.5X Absorption Refrigerator 177l
921074333 RMDT 10.5X Absorption Refrigerator 177l
921074257 RMDT 10.5XT Absorption Refrigerator 177l
921074268 RMDT 10.5XT Absorption Refrigerator 177l
921074171 RMDT 10.5XT Absorption Refrigerator 177l
921074186 RMDT 10.5XT Absorption Refrigerator 177l
921074188 RMDT 10.5XT Absorption Refrigerator 177l
921074201 RMDT 10.5XT Absorption Refrigerator 177l
921074218 RMDT 10.5XT Absorption Refrigerator 177l
921074223 RMDT 10.5XT Absorption Refrigerator 177l
921074239 RMDT 10.5XT Absorption Refrigerator 177l
921074283 RMDT 10.5XT Absorption Refrigerator 177l
921132908 RMDT 10.5XT Absorption Refrigerator 177l
921132910 RMDT 10.5XT Absorption Refrigerator 177l
921132923 RMDT 10.5XT Absorption Refrigerator 177l
921074253 RML 10.4 Absorption Refrigerator 139l
921132986 RML 10.4 Absorption Refrigerator 139l
921074167 RML 10.4 Absorption Refrigerator 139l
921074197 RML 10.4 Absorption Refrigerator 139l
921074234 RML 10.4 Absorption Refrigerator 139l
921074282 RML 10.4 Absorption Refrigerator 139l
921074318 RML 10.4 Absorption Refrigerator 139l
921074319 RML 10.4 Absorption Refrigerator 139l
921074328 RML 10.4 Absorption Refrigerator 139l
921074334 RML 10.4 Absorption Refrigerator 139l
921074336 RML 10.4 Absorption Refrigerator 139l
921074338 RML 10.4 Absorption Refrigerator 139l
921074340 RML 10.4 Absorption Refrigerator 139l
921132872 RML 10.4 Absorption Refrigerator 139l
921132983 RML 10.4 Absorption Refrigerator 139l
921132990 RML 10.4 Absorption Refrigerator 139l
921132992 RML 10.4 Absorption Refrigerator 139l
921132998 RML 10.4 Absorption Refrigerator 139l
921074260 RML 10.4T Absorption Refrigerator 139l
921074161 RML 10.4T Absorption Refrigerator 139l
921074162 RML 10.4T Absorption Refrigerator 139l
921074189 RML 10.4T Absorption Refrigerator 139l
921074195 RML 10.4T Absorption Refrigerator 139l
921074196 RML 10.4T Absorption Refrigerator 139l
921074212 RML 10.4T Absorption Refrigerator 139l
921074237 RML 10.4T Absorption Refrigerator 139l
921074243 RML 10.4T Absorption Refrigerator 139l
921074244 RML 10.4T Absorption Refrigerator 139l
921074251 RML 10.4T Absorption Refrigerator 139l
921074274 RML 10.4T Absorption Refrigerator 139l
921074275 RML 10.4T Absorption Refrigerator 139l
921132877 RML 10.4T Absorption Refrigerator 139l
921132881 RML 10.4T Absorption Refrigerator 139l
921132984 RML 10.4T Absorption Refrigerator 139l
921132987 RML 10.4T Absorption Refrigerator 139l
921132988 RML 10.4T Absorption Refrigerator 139l
921132993 RML 10.4T Absorption Refrigerator 139l
921132994 RML 10.4T Absorption Refrigerator 139l
921132995 RML 10.4T Absorption Refrigerator 139l
921132996 RML 10.4T Absorption Refrigerator 139l
921219250 RMDT 10.5T Absorption Refrigerator 153l
921219236 RMD 10.5XT Absorption Refrigerator 177l
921370980 RML10.4P Absorption Refrigerator 139l
921370981 RML10.4P Absorption Refrigerator 139l
921370982 RML10.4P Absorption Refrigerator 139l
921370983 RML10.4P Absorption Refrigerator 139l
921370984 RML10.4P Absorption Refrigerator 139l
921370985 RML10.4P Absorption Refrigerator 139l
921370986 RML10.4P Absorption Refrigerator 139l
921370987 RML10.4P Absorption Refrigerator 139l
921219238 RMD 10.5T Absorption Refrigerator 153l
921219255 RMD 10.5T Absorption Refrigerator 153l
921219316 RMD10.5P Absorption Refrigerator 153l
921219317 RMD10.5P Absorption Refrigerator 153l
921219318 RMD10.5P Absorption Refrigerator 153l
921219319 RMD10.5P Absorption Refrigerator 153l
921219321 RMD10.5P Absorption Refrigerator 153l
921219346 RMD10.5XP Absorption Refrigerator 177l
921219347 RMD10.5XP Absorption Refrigerator 177l
921219348 RMD10.5XP Absorption Refrigerator 177l
921219350 RMD10.5XP Absorption Refrigerator 177l
921219352 RMD10.5XP Absorption Refrigerator 177l
921219345 RMD10.5XP Absorption Refrigerator 177l
921219353 RMD10.5XP Absorption Refrigerator 177l
921219322 RMD10.5P Absorption Refrigerator 153l
921219315 RMD10.5P Absorption Refrigerator 153l
921219323 RMD10.5P Absorption Refrigerator 153l
921219320 RMD10.5P Absorption Refrigerator 153l
921219242 RMDT 10.5XT Absorption Refrigerator 177l
921219380 RMDT10.5XP Absorption Refrigerator 177l
921219377 RMDT10.5XP Absorption Refrigerator 177l
921219252 RMDT 10.5XT Absorption Refrigerator 177l
921219381 RMDT10.5XP Absorption Refrigerator 177l
921219379 RMDT10.5XP Absorption Refrigerator 177l
921219237 RMDT 10.5T Absorption Refrigerator 153l
921219254 RMDT 10.5T Absorption Refrigerator 153l
921219364 RMDT10.5P Absorption Refrigerator 153l
921219362 RMDT10.5P Absorption Refrigerator 153l
921219251 RMDT 10.5T Absorption Refrigerator 153l
921219365 RMDT10.5P Absorption Refrigerator 153l
921219363 RMDT10.5P Absorption Refrigerator 153l
921219201 RMD 10.5X Absorption Refrigerator 177l
921219203 RMD 10.5XT Absorption Refrigerator 177l
921219204 RMD 10.5T Absorption Refrigerator 153l
921219205 RMD 10.5XT Absorption Refrigerator 177l
921219208 RMD 10.5 Absorption Refrigerator 153l
921219209 RMD 10.5 Absorption Refrigerator 153l
921219211 RMD 10.5X Absorption Refrigerator 177l
921219212 RMD 10.5XT Absorption Refrigerator 177l
921219213 RMD 10.5X Absorption Refrigerator 177l
921219216 RMD 10.5XT Absorption Refrigerator 177l
921219217 RMD 10.5XT Absorption Refrigerator 177l
921219218 RMD 10.5XT Absorption Refrigerator 177l
921219220 RMD 10.5T Absorption Refrigerator 153l
921219221 RMD 10.5T Absorption Refrigerator 153l
921219222 RMDT 10.5T Absorption Refrigerator 153l
921219223 RMD 10.5T Absorption Refrigerator 153l
921219227 RMD 10.5T Absorption Refrigerator 153l
921219230 RMD 10.5XT Absorption Refrigerator 177l
921219231 RMDT 10.5T Absorption Refrigerator 153l
921219239 RMD 10.5T Absorption Refrigerator 153l
921219240 RMD 10.5XT Absorption Refrigerator 177l
921219244 RMDT 10.5XT Absorption Refrigerator 177l
921219206 RMD 10.5T Absorption Refrigerator 153l
921219257 RMD 10.5T Absorption Refrigerator 153l
921219265 RMD 10.5T Absorption Refrigerator 153l
921219266 RMD 10.5 Absorption Refrigerator 153l
921219263 RMD 10.5XT Absorption Refrigerator 177l
921219264 RMD 10.5XT Absorption Refrigerator 177l
921219259 RMD 10.5X Absorption Refrigerator 177l
921219241 RMD 10.5XT Absorption Refrigerator 177l
921219349 RMD10.5XP Absorption Refrigerator 177l
921219351 RMD10.5XP Absorption Refrigerator 177l
921219207 RMDT 10.5T Absorption Refrigerator 153l
921219360 RMDT10.5 PAbsorption Refrigerator 153l
921219210 RMDT 10.5T Absorption Refrigerator 153l
921219361 RMDT10.5P Absorption Refrigerator 153l
921219245 RMDT 10.5XT Absorption Refrigerator 177l
921219375 RMDT10.5XP Absorption Refrigerator 177l
921219243 RMDT 10.5XT Absorption Refrigerator 177l
921219376 RMDT10.5XP Absorption Refrigerator 177l
921219246 RMDT 10.5XT Absorption Refrigerator 177l
921219378 RMDT10.5XP Absorption Refrigerator 177l
