Paire de crochets de verrouillage de couleur gris clair (RAL7035)  ou crème (blanc cassé RAL9001) (droit et gauche) pour dôme ou lanterneau Midi Heki par Dometic

pièce d’origine constructeur (de Dometic) BG1707

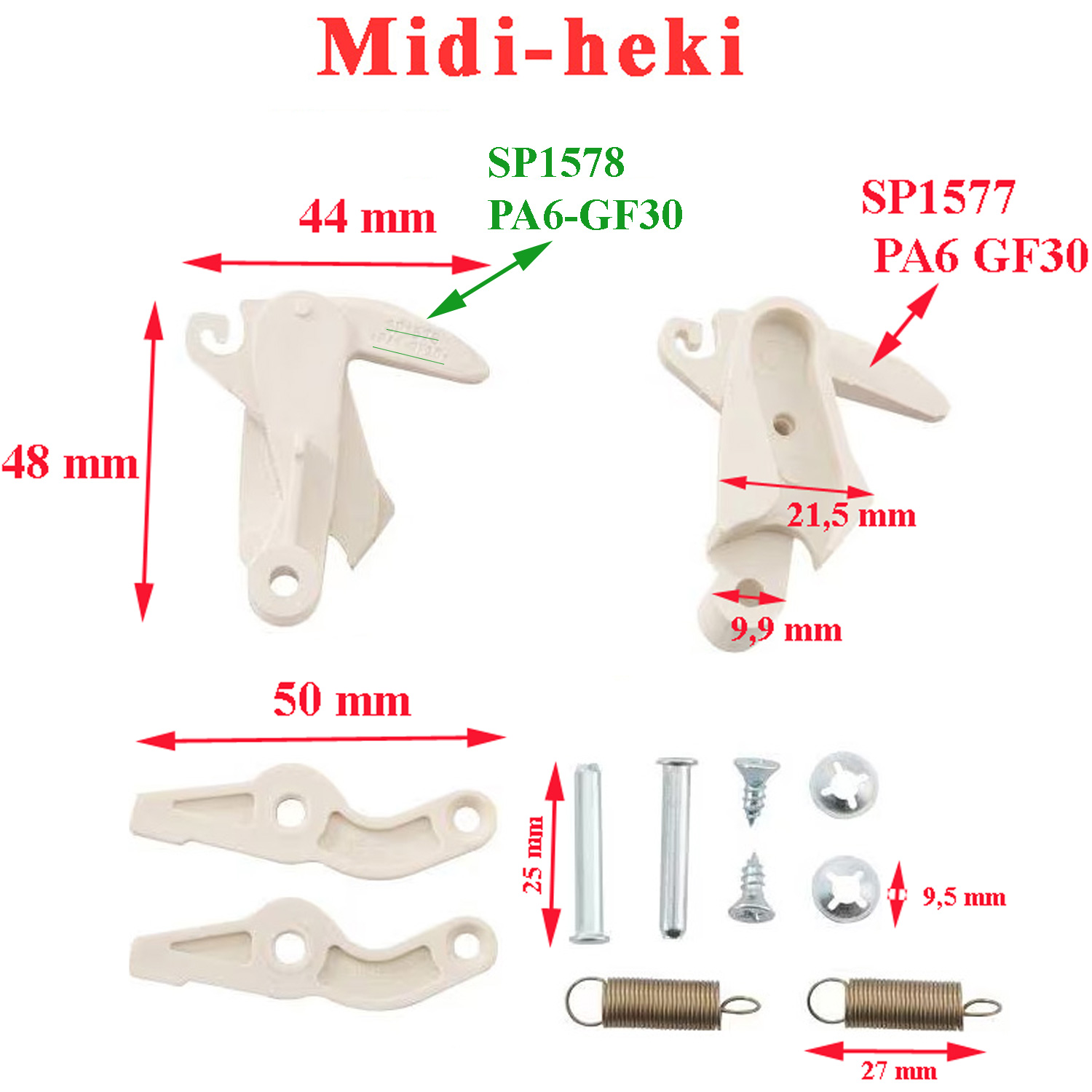

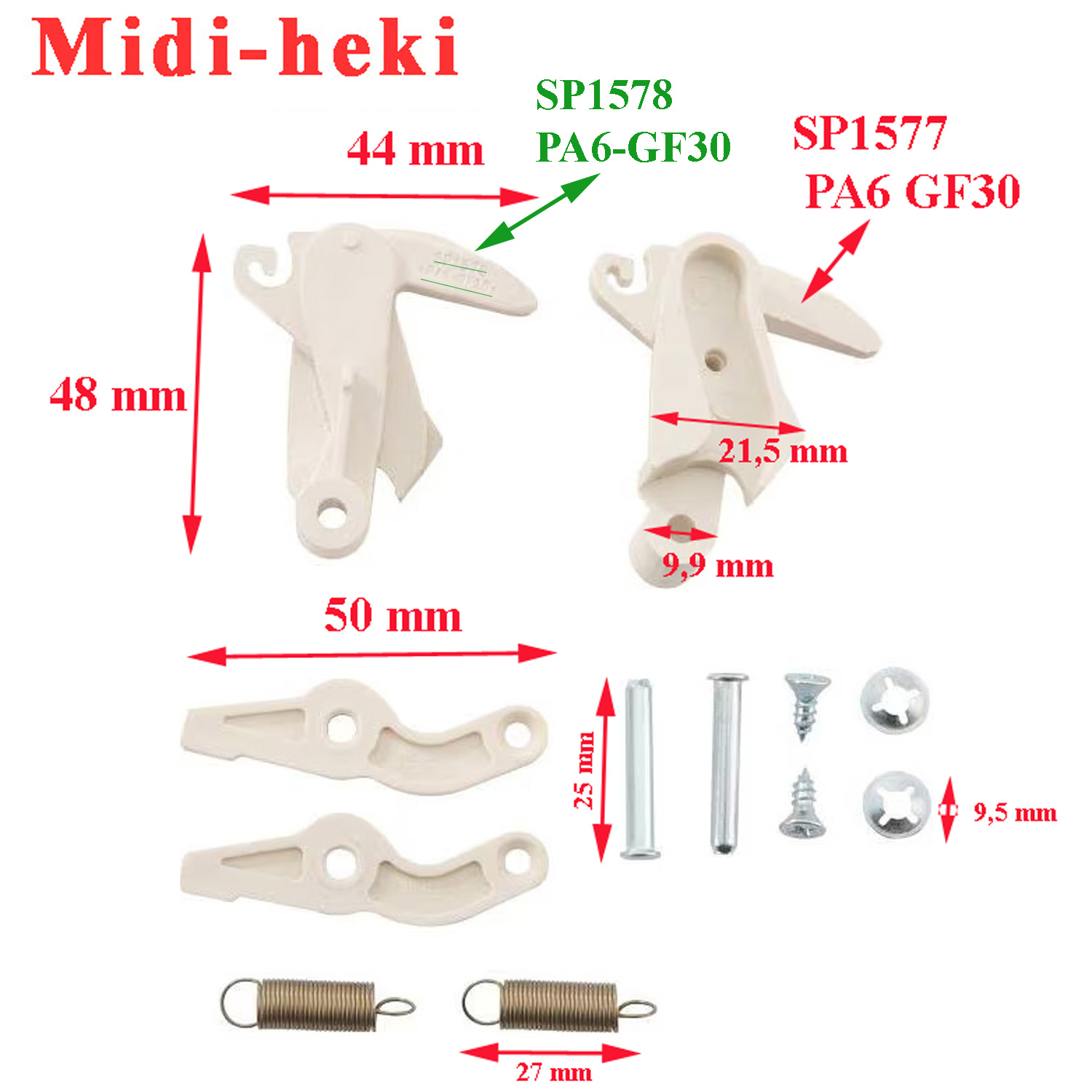

inscription gravées sur les crochets : SP1578 SP1577   >PA6-GF30<

• crochet gris clair , ref parts 4460000334  RAL7035,
• crème (blanc cassé) ref parts 4460000333  RAL 9001

Réf: EW1598

(date crème 17/2/26, 19/2, 3/3 (le 3/3))

Couleur : gris clair RAL7035 ou Crème RAL 9001

Ce kit contient les 12 pièces suivantes

Référence article  Quantité      Libellé article Description
4460000612          1           locking hook gris clair
4460000613         1            locking hook gris clair
4460000631         2            plateau locking hook
4460000632         2             boulon
4460000633         2            anneau d’arrêt
4460000616         2              tension spring
4460000611         2             vis

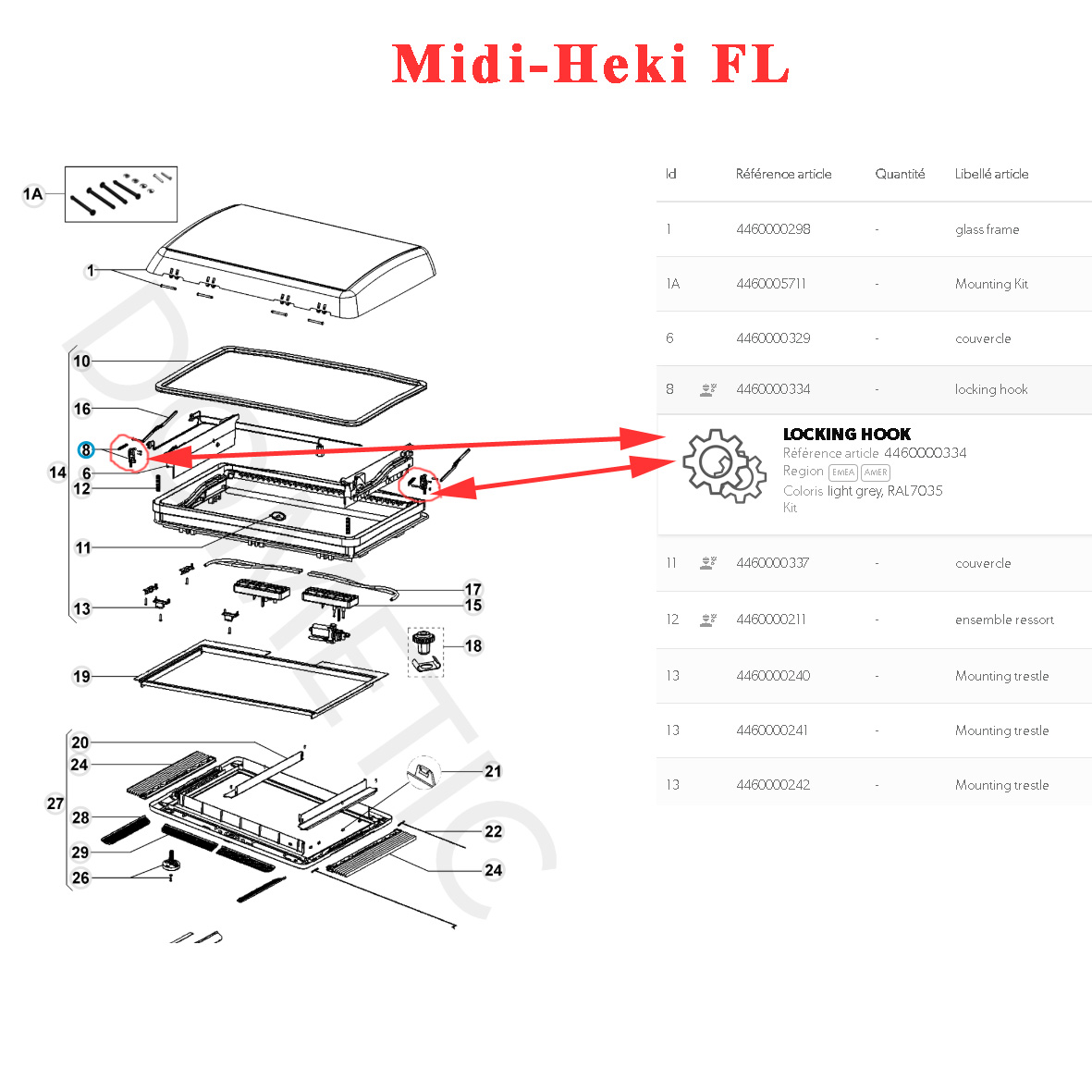

Pour vérifier si votre lanterneau Midi-heki comporte bien cette piece, merci de nous contacter tel 01.84.20.86.07 et munissez vous pour vérifier la compatibilité de votre numéro de produit de votre lanterneau Dometic (qui se trouve sur l’étiquette signalétique).

Ou bien, pour rechercher votre référence dans la liste ci-dessous : Utilisé CTRL + F

N° produit Nom du produit :

9104122880 Midi-Heki GD Art.1493 crank model 700×500
9104122884 Midi-Heki GD Art.1493 crank model 700×500
9104122889 Midi-Heki GD Art.1493 crank model 700×500
9620008687 Midi-Heki FL Art.1530
9620008689 Midi-Heki FL Art.1530
9620008693 Midi-Heki FL Art.1530
9620008699 Midi-Heki FL Art.1530
9620012802 Midi Heki FL Art.1531 motorized 700×500
9104101103 Midi Heki Art.1369 crank model 700×500
9104102863 Midi Heki Art.1370 motorized 700×500
9104104492 Midi Heki Art.1369 crank model 700×500
9104117166 Midi Heki Art.1369 crank model 700×500
9104117602 Midi Heki Art.1369 crank model 700×500
9104117654 Midi Heki Art.1370 motorized 700×500
9104118565 Midi Heki Art.1369 crank model 700×500
9104120818 MidiHeki
9104120970 MidiHeki
9104121162 Midi Heki GD Art.1494 motorized 700×500
9104121766 Midi-Heki GD Art.1493 crank model 700×500
9104121767 Midi-Heki GD Art.1493 crank model 700×500
9104121845 Midi-Heki GD Art.1493 crank model 700×500



9104100255 Midi Heki Art.1369 crank model 700×500
9104100256 Midi Heki Art.1369 crank model 700×500
9104100257 Midi Heki Art.1370 motorized 700×500
9104100258 Midi Heki Art.1370 motorized 700×500
9104100505 Midi Heki Art.1369 crank model 700×500
9104101064 Midi Heki Art.1369 crank model 700×500
9104101123 Midi Heki Art.1369 crank model 700×500
9104101246 Midi Heki Art.1369 crank model 700×500
9104101397 Midi Heki Art.1369 crank model 700×500
9104101536 Midi Heki Art.1369 crank model 700×500
9104101541 Midi Heki Art.1369 crank model 700×500
9104102189 Midi Heki Art.1369 crank model 700×500
9104102190 Midi Heki Art.1370 motorized 700×500
9104102192 Midi Heki Art.1369 crank model 700×500
9104102324 Midi Heki Art.1369 crank model 700×500
9104102325 Midi Heki Art.1369 crank model 700×500
9104102753 Midi Heki Art.1370 motorized 700×500
9104102755 Midi Heki Art.1369 crank model 700×500
9104103063 Midi Heki Art.1369 crank model 700×500
9104103064 Midi Heki Art.1369 crank model 700×500
9104103066 Midi Heki Art.1369 crank model 700×500
9104103824 Midi Heki Art.1369 crank model 700×500
9104103825 Midi Heki Art.1369 crank model 700×500
9104103827 Midi Heki Art.1369 crank model 700×500
9104103829 Midi Heki Art.1369 crank model 700×500
9104104294 Midi Heki Art.1369 crank model 700×500
9104104955 Midi Heki Art.1369 crank model 700×500
9104104958 Midi Heki Art.1369 crank model 700×500
9104104960 Midi Heki Art.1369 crank model 700×500
9104104961 Midi Heki Art.1370 motorized 700×500
9104104962 Midi Heki Art.1370 motorized 700×500
9104104963 Midi Heki Art.1370 motorized 700×500
9104104964 Midi Heki Art.1370 motorized 700×500
9104104965 Midi Heki Art.1370 motorized 700×500
9104105201 Midi Heki Art.1370 motorized 700×500
9104105212 Midi Heki Art.1369 crank model 700×500
9104105248 Midi Heki Art.1369 crank model 700×500
9104105472 Midi Heki Art.1370 motorized 700×500
9104105528 Midi-Heki Art.1368 lever model 700×500
9104106297 Midi Heki Art.1369 crank model 700×500
9104106369 Midi Heki Art.1369 crank model 700×500
9104106502 Midi Heki Art.1370 motorized 700×500
9104106595 Midi Heki Art.1369 crank model 700×500
9104106598 Midi Heki Art.1369 crank model 700×500
9104106687 Midi Heki Art.1370 motorized 700×500
9104106891 Midi-Heki Style Art.1428 crank model 400×700
9104107365 Midi-Heki Style Art.1428 crank model 400×700
9104107397 Midi Heki Art.1369 crank model 700×500
9104107485 Midi Heki Art.1370 motorized 700×500
9104107729 Midi Heki Art.1370 motorized 700×500
9104107851 Midi Heki Art.1369 crank model 700×500
9104107925 Midi-Heki Style Art.1428 crank model 400×700
9104107930 Midi-Heki Style Art.1428 crank model 400×700
9104108045 Midi-Heki Style Art.1428 crank model 400×700
9104108099 Midi Heki Art.1369 crank model 700×500
9104108349 Midi-Heki Style Art.1428 crank model 400×700
9104108350 MidiHekiStyle
9104108351 Midi-Heki Style Art.1428 crank model 400×700
9104108362 Midi-Heki Style Art.1428 crank model 400×700
9104109641 Midi Heki Art.1369 crank model 700×500
9104109757 Midi Heki Art.1369 crank model 700×500
9104109858 Midi Heki Art.1369 crank model 700×500
9104109965 Midi Heki Art.1370 motorized 700×500
9104109975 Midi Heki Art.1369 crank model 700×500
9104109995 Midi Heki Art.1369 crank model 700×500
9104110103 Midi Heki Art.1369 crank model 700×500
9104110236 Midi Heki Art.1370 motorized 700×500
9104110273 Midi Heki Art.1369 crank model 700×500
9104110476 Midi-Heki Style Art.1481 400×700 new version
9104110483 Midi Heki Art.1369 crank model 700×500
9104111587 Midi Heki Art.1370 motorized 700×500
9104112489 Midi Heki Art.1369 crank model 700×500
9104112512 Midi Heki Art.1369 crank model 700×500
9104112513 Midi Heki Art.1369 crank model 700×500
9104112656 Midi Heki Art.1369 crank model 700×500
9104113633 Midi Heki Art.1370 motorized 700×500
9104113638 Midi-Heki Style Art.1428 crank model 400×700
9104113757 Midi-Heki Style Art.1428 crank model 400×700
9104113763 Midi Heki Art.1369 crank model 700×500
9104113828 Midi Heki Art.1369 crank model 700×500
9104114181 Midi Heki Art.1369 crank model 700×500
9104114220 Midi-Heki Style Art.1428 crank model 400×700
9104114351 Midi Heki Art.1369 crank model 700×500
9104114352 Midi Heki Art.1370 motorized 700×500
9104115017 Midi Heki Art.1369 crank model 700×500
9104115852 Midi Heki Art.1369 crank model 700×500
9104116339 Midi-Heki Style Art.1475 crank model 700×500
9104116340 Midi-Heki Style Art.1475 crank model 700×500
9104116405 Midi-Heki Style Art.1475 crank model 700×500
9104116448 Midi-Heki Style Art.1475 crank model 700×500
9104116484 Midi-Heki Style Art.1475 crank model 700×500
9104116512 Midi-Heki Style Art.1475 crank model 700×500
9104116537 Midi-Heki Style Art.1475 crank model 700×500
9104116540 Midi-Heki Style Art.1475 crank model 700×500
9104116633 Midi-Heki Style Art.1475 crank model 700×500
9104116634 Midi-Heki Style Art.1475 crank model 700×500
9104116661 Midi-Heki Style Art.1475 crank model 700×500
9104116673 Midi-Heki Style Art.1475 crank model 700×500
9104116763 Midi-Heki Style Art.1475 crank model 700×500
9104116765 Midi-Heki Style Art.1475 crank model 700×500
9104116840 Midi-Heki Style Art.1475 crank model 700×500
9104116851 Midi-Heki Style Art.1475 crank model 700×500
9104116853 Midi-Heki Style Art.1475 crank model 700×500
9104116855 Midi-Heki Style Art.1475 crank model 700×500
9104116942 Midi-Heki Style Art.1475 crank model 700×500
9104116966 Midi-Heki Style Art.1481 400×700 new version
9104116967 Midi-Heki Style Art.1481 400×700 new version
9104117014 Midi-Heki Style Art.1481 400×700 new version
9104117130 Midi Heki Art.1369 crank model 700×500
9104117423 Midi-Heki Style Art.1481 400×700 new version
9104117424 Midi-Heki Style Art.1481 400×700 new version
9104117541 Midi-Heki Style Art.1481 400×700 new version
9104117704 MidiHekiStyle
9104117965 Midi-Heki Style Art.1475 crank model 700×500
9104118028 Midi-Heki Style Art.1481 400×700 new version
9104118496 Midi Heki Art.1369 crank model 700×500
9104118737 Midi Heki Art.1369 crank model 700×500
9104119610 Midi-Heki Style Art.1475 crank model 700×500
9104120059 Midi Heki Style GD Art.1491 crank model 700×500
9104120060 Midi Heki Style GD Art.1491 crank model 700×500
9104120081 Midi-Heki GD Art.1493 crank model 700×500
9104120082 Midi-Heki GD Art.1493 crank model 700×500
9104120083 Midi Heki GD Art.1494 motorized 700×500
9104120206 Midi Heki Style GD Art.1491 crank model 700×500
9104120210 Midi-Heki GD Art.1493 crank model 700×500
9104120327 Midi Heki GD Art.1494 motorized 700×500
9104120328 Midi-Heki GD Art.1493 crank model 700×500
9104120332 Midi-Heki GD Art.1493 crank model 700×500
9104120333 Midi-Heki GD Art.1493 crank model 700×500
9104120355 Midi Heki GD Art.1494 motorized 700×500
9104120380 Midi Heki Style GD Art.1491 crank model 700×500
9104120381 Midi Heki Style GD Art.1491 crank model 700×500
9104120384 Midi-Heki GD Art.1493 crank model 700×500
9104120385 Midi-Heki GD Art.1493 crank model 700×500
9104120386 Midi Heki GD Art.1494 motorized 700×500
9104120394 Midi Heki Style GD Art.1491 crank model 700×500
9104120395 Midi Heki Style GD Art.1491 crank model 700×500
9104120396 Midi Heki Style GD Art.1491 crank model 700×500
9104120397 Midi Heki Style GD Art.1491 crank model 700×500
9104120400 Midi Heki GD Art.1494 motorized 700×500
9104120419 Midi-Heki GD Art.1493 crank model 700×500
9104120421 Midi Heki Style GD Art.1491 crank model 700×500
9104120428 Midi Heki GD Art.1494 motorized 700×500
9104120440 Midi-Heki GD Art.1493 crank model 700×500
9104120454 Midi Heki Style GD Art.1491 crank model 700×500
9104120455 Midi Heki Style GD Art.1491 crank model 700×500
9104120458 Midi Heki Style GD Art.1491 crank model 700×500
9104120494 Midi Heki Style GD Art.1491 crank model 700×500
9104120495 Midi Heki Style GD Art.1491 crank model 700×500
9104120536 Midi Heki Style GD Art.1491 crank model 700×500
9104120589 Midi-Heki Style Art.1481 400×700 new version
9104120595 Midi Heki Art.1370 motorized 700×500
9104120610 Midi-Heki GD Art.1493 crank model 700×500
9104120639 Midi-Heki GD Art.1493 crank model 700×500
9104120640 Midi-Heki GD Art.1493 crank model 700×500
9104120713 Midi Heki GD Art.1494 motorized 700×500
9104120808 Midi-Heki GD Art.1493 crank model 700×500
9104120810 Midi Heki Art.1369 crank model 700×500
9104120811 Midi-Heki Style Art.1481 400×700 new version
9104120891 Midi Heki Style GD Art.1491 crank model 700×500
9104120922 Midi-Heki GD Art.1493 crank model 700×500
9104120938 Midi Heki Style GD Art.1491 crank model 700×500
9104121043 Midi Heki Style GD Art.1491 crank model 700×500
9104121045 Midi Heki Style GD Art.1491 crank model 700×500
9104121155 Midi Heki Art.1369 crank model 700×500
9104121156 Midi Heki Style GD Art.1491 crank model 700×500
9104121165 Midi Heki Style GD Art.1491 crank model 700×500
9104121185 Midi Heki Art.1369 crank model 700×500
9104121201 Midi Heki Style GD Art.1491 crank model 700×500
9104121202 Midi Heki Style GD Art.1491 crank model 700×500
9104121206 Midi-Heki GD Art.1493 crank model 700×500
9104121243 Midi Heki Art.1370 motorized 700×500
9104121520 Midi-Heki GD Art.1493 crank model 700×500
9104121526 Midi Heki Art.1369 crank model 700×500
9104121569 Midi Heki Art.1369 crank model 700×500
9104121629 Midi-Heki GD Art.1493 crank model 700×500
9104121632 Midi-Heki GD Art.1493 crank model 700×500
9104121634 Midi-Heki GD Art.1493 crank model 700×500
9104121644 Midi-Heki GD Art.1493 crank model 700×500
9104121870 Midi Heki Style GD Art.1491 crank model 700×500
9104121971 Midi-Heki GD Art.1493 crank model 700×500
9104122092 Midi-Heki GD Art.1493 crank model 700×500
9104122148 Midi Heki Art.1369 crank model 700×500
9104122174 Midi Heki Style GD Art.1491 crank model 700×500
9104122207 Midi-Heki GD Art.1493 crank model 700×500
9104122212 Midi Heki Style GD Art.1491 crank model 700×500
9104122367 Midi Heki Style GD Art.1491 crank model 700×500
9104122379 Midi Heki GD Art.1494 motorized 700×500
9104122492 Midi Heki Art.1369 crank model 700×500
9104122509 Midi Heki Style GD Art.1491 crank model 700×500
9104122606 Midi-Heki GD Art.1493 crank model 700×500
9104122607 Midi-Heki GD Art.1493 crank model 700×500
9104122721 Midi Heki Art.1369 crank model 700×500
9104122754 Midi Heki Art.1369 crank model 700×500
9104122755 Midi Heki Style GD Art.1491 crank model 700×500
9104122780 Midi Heki Style GD Art.1491 crank model 700×500
9104122827 Midi-Heki GD Art.1493 crank model 700×500
9104122971 Midi Heki Art.1370 motorized 700×500
9104122982 Midi-Heki GD Art.1493 crank model 700×500
9104123184 Midi Heki Style GD Art.1491 crank model 700×500
9104123347 Midi-Heki GD Art.1493 crank model 700×500
9104123740 Midi-Heki Style Art.1475 crank model 700×500
9104124488 Midi-Heki GD Art.1493 crank model 700×500
9104125472 Midi-Heki GD Art.1493 crank model 700×500
9620002637 Midi-Heki GD Art.1493 crank model 700×500
9620008685 Midi-Heki FL Art.1530
9620008686 Midi-Heki FL Art.1530
9620008688 Midi-Heki FL Art.1530
9620008690 Midi-Heki FL Art.1530
9620008692 Midi-Heki FL Art.1530
9620008694 Midi-Heki FL Art.1530
9620008695 Midi-Heki FL Art.1530
9620008697 Midi-Heki FL Art.1530
9620012812 Midi-Heki FL Art.1530
9620012813 Midi-Heki FL Art.1530
9620012814 Midi-Heki FL Art.1530
9620012815 Midi-Heki FL Art.1530
9620012816 Midi-Heki FL Art.1530
9620012817 Midi-Heki FL Art.1530
9620012818 Midi-Heki FL Art.1530
9620012820 Midi Heki FL Art.1531 motorized 700×500
9620013313 Midi-Heki FL Art.1530
9620013314 Midi-Heki FL Art.1530
9620013315 Midi-Heki FL Art.1530
9620013424 Midi Heki FL Art.1531 motorized 700×500
9620015905 Midi-Heki FL Art.1530
